Learning how to build your first circuit board is a rewarding step for anyone interested in electronics, whether you are a hobbyist, student, or aspiring engineer. Creating a custom board allows you to bring your electronic ideas to life, understand the fundamentals of circuit design, and gain hands-on experience with essential tools and components. This guide walks through the practical steps, tools, and tips needed to assemble your first printed circuit board (PCB) with confidence.
Before diving into the process, it’s helpful to understand how circuit boards fit into the broader context of electronic product development. For a deeper look at integrating your designs into complete products, consider reading the electronic product design system integration guide.
Essential Tools and Materials for PCB Assembly
Before starting your first project, gather the necessary equipment and materials. Having the right tools on hand will make the assembly process smoother and more enjoyable. Here’s a checklist to get you started:
- Soldering iron (preferably temperature-controlled)
- Solder wire (lead-free or leaded, depending on preference)
- Desoldering pump or solder wick (for corrections)
- Small wire cutters and needle-nose pliers
- PCB board (either a pre-designed kit or your own design)
- Electronic components (resistors, capacitors, ICs, LEDs, etc.)
- Multimeter for testing
- Safety glasses and a well-ventilated workspace
Optional but helpful tools include tweezers for small parts, a magnifying glass or head loupe, and a PCB holder or “third hand” tool for stability.
Designing and Planning Your First PCB
Planning is a crucial step in learning how to build your first circuit board. Start by sketching your circuit on paper or using a schematic capture tool. Identify the components you’ll need and how they connect. For beginners, it’s often easiest to use a simple kit or a breadboard version of your circuit before committing to a permanent PCB.
When you’re ready to design your own layout, consider using free PCB design software such as KiCad, EasyEDA, or Fritzing. These tools help you draw schematics, place components, and route traces. Keep your first design simple—avoid densely packed layouts or complex multilayer boards until you gain more experience.
Choosing the Right PCB Type
For your initial project, a single-sided or double-sided board is ideal. Single-sided boards are easier to work with and less expensive to produce. If you’re using a kit, the board will be provided. If you’re designing your own, you can order custom PCBs from online manufacturers or use prototyping materials like perfboard or stripboard.

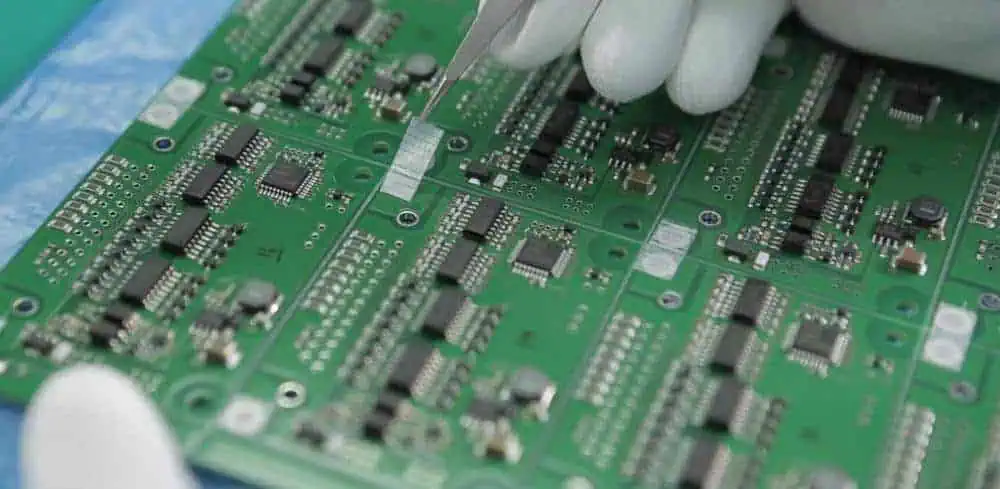

Step-by-Step Guide to Assembling Your Circuit Board
Once you have your board and components ready, follow these steps to assemble your first PCB:
- Organize your workspace: Lay out all components and tools. Double-check your parts list against your schematic.
- Insert components: Start with the smallest and flattest components, such as resistors and diodes. Insert them into the correct holes according to your schematic.
- Bend and trim leads: After inserting, bend the leads slightly to hold the component in place. Trim excess leads with wire cutters.
- Solder connections: Heat the joint with your soldering iron, then apply solder to the pad and lead. Remove the iron and let the joint cool. Avoid using too much solder, which can cause shorts.
- Add larger components: Continue with taller parts like capacitors, IC sockets, and connectors. Solder each in place.
- Inspect your work: Check for cold solder joints, solder bridges, or misplaced components. Use a magnifying glass if needed.
- Test the board: Use a multimeter to check for continuity and correct voltages before powering up the circuit.
Common Mistakes and Troubleshooting Tips
It’s normal to encounter a few challenges when assembling your first board. Here are some common issues and how to address them:
- Solder bridges: If solder accidentally connects two pads, use a desoldering pump or wick to remove the excess.
- Cold joints: These appear dull or cracked. Reheat and apply a bit more solder for a shiny, solid connection.
- Misplaced components: Double-check orientation for polarized parts like diodes and electrolytic capacitors. Refer to your schematic and silkscreen markings.
- No power or malfunction: Verify all connections, check for shorts, and test voltages with a multimeter.
Patience and careful inspection are key. If you’re unsure, compare your board to reference images or ask for help in online electronics forums.
Expanding Your Skills Beyond the Basics
Once you’ve mastered the basics of how to build your first circuit board, consider exploring more advanced topics. Learn about surface-mount technology (SMT), multi-layer boards, or automated assembly processes. For a comprehensive overview of assembly techniques, check out this beginner’s guide to electronics projects and manual assembly.
Documenting your process is also important for future projects. For tips on keeping organized records, see the electronic product design documentation workflow article.
Testing and Safety Considerations
Before powering up your finished board, always double-check for errors. Use a multimeter to verify there are no shorts between power and ground. When testing, start with a low voltage supply if possible. Wear safety glasses and keep your workspace clear of flammable materials. If your board will be used in a product, review relevant safety standards—more information can be found in the electronic product design safety standards comparison.
Frequently Asked Questions
What is the easiest way to start making circuit boards?
For beginners, using a pre-designed kit or a breadboard is the simplest way to learn. Kits include all necessary components and instructions, minimizing the risk of mistakes. Once you’re comfortable, you can move on to designing and assembling your own PCBs.
How do I avoid mistakes when soldering?
Work slowly, use the right amount of solder, and keep your iron tip clean. Always double-check component placement before soldering. If you make a mistake, use a desoldering pump or wick to remove excess solder and try again.
Can I design a PCB without expensive software?
Yes, there are several free tools available for PCB design, such as KiCad, EasyEDA, and Fritzing. These programs are beginner-friendly and offer plenty of tutorials to help you get started.
Conclusion
Building your first circuit board is a practical way to develop your electronics skills. By following the steps outlined here—gathering the right tools, planning your design, assembling carefully, and testing thoroughly—you’ll gain valuable experience and confidence. As you progress, explore more advanced techniques and documentation practices to support your growth in electronics. For further reading on testing and localization, see the electronic product design performance testing guide and electronic product localization considerations.
